The most aggressive flip flow screen on the market.
The EDGE FreeFlow Screen allows for two screening operations in one unit. Customers can now processed un-prescreened material via the FreeFlow’s robust scalping screen top deck whilst providing a fine screening function of difficult to screen material via the flip flow bottom deck.
The EDGE FreeFlow Screen range provides a highly efficient screening solution for sticky, moist materials with a high percentage of fines and is ideal for the processing of compost, wood, skip waste, trommel fines, construction and demolition waste and incinerator ash. The screen has been designed to eliminate the blinding or blockage of the screen media that often occurs with traditional screens when screening wet or sticky material. The flip flow incorporates a heavy duty screen structure which generates a huge throw that propels material upwards and outwards so that the material can get time to untangle and separate. With increased throughput, high efficiency, adjustable speed and throw and quality end products; the EDGE FreeFlow Screen range is the ideal separation solution for difficult to screen materials.
Options:
Features and Benefits:
Applications:
The QE241 is the most compact model in the heavy duty scalper range.
It has been designed for the smaller operator who requires a high performing, versatile unit with a smaller operating footprint that is easy to transport.
Sandvik have designed the QE241 with a highly aggressive 11′ x 4′ double deck screenbox for increased screening efficiency. This features a banana type bottom deck arrangement to further improve screening capability.
Features and Benefits:
The enormous power of the QE441 scalper has been proven across a variety of applications worldwide. The fines conveyor alone is designed to handle up to 900TPH, making this unit an essential scalper for your operation.
Sandvik have designed the QE441 to best suit your requirements and this unit includes a heavy duty I-beam chassis, apron feeder, reinforced hopper doors and impact bar lined overs conveyor all equipped as standard. The QE441 can accept the most robust of infeed material and is best suited to your large quarrying, mining or recycling applications. It can also work as a stand-alone unit feeding a primary crusher.
Features and Benefits:
The QE341 Mobile Scalper is the most advanced, heavy duty, tracked mobile scalping screen on the market.
Sandvik have designed it to handle your most difficult infeed material with a wide hopper opening, aggressive screenbox and oversize conveyor. This also ensures a free flow of material from front to back.
The QE341 Mobile Scalper features a double-plated apron feeder as standard, ensuring it can handle heavy duty scalping applications. The middle and over size conveyors can be hydraulically lowered to feed material into a cone or primary. This revolutionary mobile scalping screen is purpose built for the recycling and quarrying markets. Customer feedback was an integral element in the production of the QE341, and has resulted in a mobile scalping screen that is as user friendly as it is productive.
Applications include screening quarry overburden, blasted rock, landfill mining, C&D waste, aggregates, slag heaps, environmental clean-ups and topsoil/subsoil.
Features and Benefits:
The QA441 is a highly productive 20 x 5′ double deck screen that comes equipped with Sandvik’s patented, world class, heavy duty Doublescreen system.
With two independent double deck screens you will effectively get one machine able to perform two screening processes on one plant.
Sandvik have designed this machine to suit the needs of larger operators. It incorporates a large feed hopper, two independently angled screen boxes and extended product conveyors that offer massive stockpiling capabilities. All of this is carried on a durable chassis that is designed to withstand the rigours of a bigger quarry or recycling applications.
Features and Benefits:

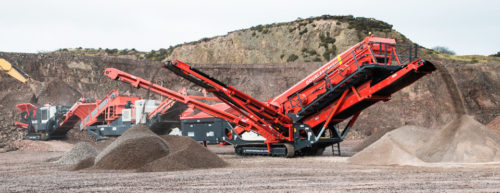

The Sandvik QA451 is the world’s only triple deck Doublescreen and offers you unrivalled throughput and control. We developed this machine to provide you with massive stockpiling capabilities.
The QA451 is a formidable solution with two inline 10′ x 5′ screenboxes, a large feed hopper and extended conveyors. We have designed the QA451 to work in closed circuit with our tracked crushers. You can optimize the feeding position to upstream units as the fourth product conveyor slews and raises / lowers hydraulically. To provide ultimate flexibility the QA451 can also work as a stand-alone screening and stockpiling system. In this mode the unit can produce four sized products with fifth oversize material scalped off at the grid.
Features and Benefits:
The Sandvik QA331 Tracked Screen is a robust, highly durable machine, designed specifically for the recycling and contractor market. QA331 incorporates a 14′ x 5′ two bearing screen box with an adjustable screening angle. The bottom deck has an extra 6 degree screening angle for ultimate screening performance. This feature, coupled with the larger screening surface area, and increased throw on the screenbox, enhances screening efficiency and capacity through the actual screenbox itself.
Features and Benefits:

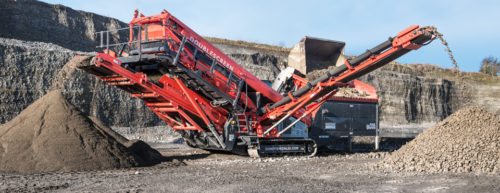

The QA335 Doublescreen is a highly productive 13 x 5′ double deck screen that comes equipped with Sandvik’s patented, world class, heavy duty Doublescreen system.
With two independent double deck screens you will effectively get one machine able to perform two screening processes on one plant.
The QA335 is designed to target the specific needs of your recycling and contracting projects. It comes equipped with a range of user-friendly features aimed at improving the overall operator experience, with sequential start up, radio remote control and two-speed tracks as standard. Sandvik have also fitted it with a complete wrap-around walkway to provide you with a safe working platform for service and maintenance.
Features and Benefits:
