Sandvik’s QI341 Mobile impact crusher is the most versatile and cost effective mid-sized unit on the market. Fitted with the CI411 Prisec™ Impactor, this unit can operate in both primary or secondary applications.
The CI411 Prisec™ Impactor is designed to meet tight end product specifications whilst providing the operator an unparalleled level of flexibility, productivity and control. The compact dimensions of the QI341 Mobile impactor make it perfect for sites where space is limited, but where superb product shape and high levels of production are required.
Our unique crescent profile design of the hammers ensures maximum reduction of material, even as the hammers wear. The 39 x 27″ feed opening can be raised by radio control and the rotor speed is adjustable to control fines production. Available in open or closed circuit versions, our QI341 Mobile impact crusher is the ultimate contractor machine.
Features and Benefits:
The QI441 is a pioneering solution offering primary and secondary crushing in one unit. This mobile impact crusher features Sandvik’s patented CI412 4-blowbar Prisec™ impact box.
This revolutionary design makes it an essential solution if you need to process aggregate and construction materials on site.
The QI441 will give you high reduction ratios, superb product shape and unsurpassed productivity. Sandvik have even developed the world’s first Doublescreen hanging screen system to ensure your throughput is not compromised by a conventional single box. This allows an even greater return on your investment as it will produce accurately sized product for immediate use.
Sandvik’s QI441 has a 54 x 31 ½” feed opening that can be further extended via remote control to accommodate your larger oversized material. This unit has been designed to ensure you get uninterrupted production with unprecedented levels of control.
Features and Benefits:
The QH331 is aimed at the operator looking for a compact, high quality mobile cone crusher.
Sandvik’s QH331 mobile cone crusher has been designed to meet your exacting aggregate product quality demands. It is one of the most flexible cone crushers on the market today and features the use of their pioneering solution, the Sandvik CH430 cone crusher, on a tracked chassis.
With this solution you will benefit from the CSC (cubical shape crushing) techniques they have developed to help you produce material of excellent shape and high quality.
The CH430 cone is at the heart of the QH331. This market leading piece of crushing technology comes equipped with a hydroset system providing you with both safety and setting adjustment functions. The automatic setting regulation system will not only optimise production for you but will also keep track of liner wear to minimise interruptions and downtime.
The QH331 is a versatile and highly productive unit. The cone comes with a choice of six different crushing chambers and a variety of bush settings. The QH331 is also a very efficient solution powered by a 261kW / 350hp engine and a fuel efficient direct drive system to ensure you receive maximum production capacity from maximum power transfer.
Features and Benefits:

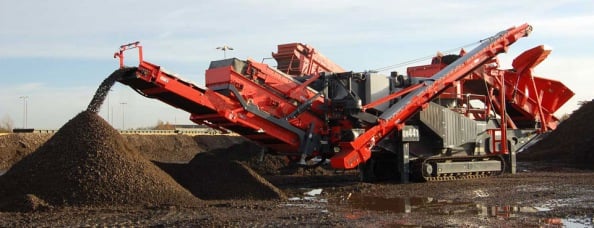

The innovative QH441 cone crusher will provide you with uninterrupted productivity and requires minimal operator intervention.
With this unit you can get moving on your project quicker and maximise your return on investment. Sandvik are utilizing the latest technology to ensure the QH441 is engineered for ease of mobility and rapid set-up time.
Featuring the world-leading CH440 Hydrocone, this model has proven itself on thousands of projects worldwide and is the ultimate solution for your crushing needs.
This cone comes with a wide choice of concaves and eccentric bush settings offering you ultimate flexibility.
Features and Benefits:
The QJ241 is ideal for your smaller operations with low operating costs but still maintaining maximum productivity.
It is the most compact jaw crusher from this world leading series. The QJ241 utilizes a substantial 40 x 26″ jaw powered by a highly economical 168kW / 225hp engine. The QJ241 is the ideal solution for recycling sites yet equally productive for your hard rock applications. Sandvik have fitted the QJ241 with a raise and lower facility on the main conveyor giving you a greater discharge height and increased clearance for rebar discharge.
Features and Benefits:
The new QJ331 is the latest development in mobile crushing technology constructed with many innovative design changes for enhanced performance, greater accessibility and ease of operation. Utilising the powerful CJ211 single toggle jaw from Sandvik it utilises the very latest technology, including finite element techniques to minimise stress levels within the frame itself. Powered by a 261 kW / 350 hp emissions compliant, fuel efficient CAT engine, its heavy duty tracked chassis enables high mobility and a quick set-up time making it the perfect solution for the recycling and contractor segment of the market.
Features and Benefits:
World Leading Jaw Crusher
The Sandvik QJ341 jaw crusher continues to build on the success of its predecessor, the QJ340 jaw crusher, one of the best selling track mounted jaw crushers in the world.
The largest in the Sandvik Q range of jaw crushers, it has been designed to meet the needs of the operator seeking a high performance mobile jaw crusher which is both reliable and durable. With a large feed opening and unique high crushing speed it is capable of delivering high outputs with excellent reduction ratios.
The powerful jaw crusher is capable of handling the most challenging of quarry applications but equally capable in the recycle segment with its large under-belt clearances and equipped with an over-band magnet, natural fines conveyor and remote control as standard.
Features and Benefits:
Sandvik UJ540 has been designed to meet your needs in the most demanding hard rock applications. This tracked jaw crusher is compact, versatile, and fuel efficient which reduces overall operating costs.
Sandvik UJ540 is a highly productive unit with low energy consumption and automated process control, enabling reduced operating costs with increased efficiency. It features the highly productive Sandvik CJ612 jaw, 48 x 44 in, on a fully tracked chassis with an electric crusher drive.
This equipment features a unique feed arrangement consisting of feeder with a by-pass chute, fines screen and an optional fines conveyor if you need it. Sandvik UJ540 allows for high by-pass rates, enabling you to maximize production. You can utilize the screen for separating and stockpiling a sellable 0-fraction.
The crusher intake and chamber configuration allows for large boulders to be crushed without damaging the crusher, allowing you to focus on the work without worrying about unnecessary downtime.
Features and Benefits:
Technical Data:
| Equipment | Sandvik CJ612 Jaw crusher |
| Feed opening | 48 x 44 in |
| Maximum feed size | 38 in |
| Engine | TAD 1355GE 409 kVA / 3406 365 kVA |
| Transport length | Part 1: 49 ft 6 in. Part 2: 29 ft 2 in. |
| Transport width | Part 1: 11 ft 6 in. Part 2: 11 ft 2 in. |
| Transport height | Part 1: 12 ft 10 in. Part 2: 12 ft 6 in. |
| Weight | Part 1: 101,413 lb Part 2: 112,436 lb |
Please note all weights and dimensions are for standard units only.
Sandvik UJ640 is designed to maintain high levels of productivity in the toughest environments. This mobile tracked jaw crusher is compact, maneuverable, and versatile, and proven to produce material of the highest quality, at a low cost-per-tonne.
Sandvik UJ640 features the Sandvik CJ615, single toggle jaw with a giant feed size of 60 x 44 in., giving outstanding rates of production. The machine is well-proven in hard rock applications and can offer you superior production rates, enabling you to maximize your investment rapidly.
Sandvik UJ640 also includes a number of features designed to simplify service and maintenance, allowing you to maximize your uptime and maintain high levels of productivity for longer periods.
Features and Benefits:
| Equipment | Sandvik CJ615 Jaw crusher |
| Feed opening | 60 x 44 in. |
| Maximum feed size | 38 in. |
| Engine | Tad 1650GE 462 kVA |
| Transport length | Part 1: Comfort – 34 ft 9 in. Direct – 21 ft 0 in. |
| Transport width | Part 1: 12 ft 6 in. Part 2: 13 ft 1 in. |
| Transport height | Part 1: 12 ft 10 in. Part 2: 13 ft 5 in. |
| Weight | Part 1: 151,017 lb Part 2: 136,687 lb |
Please note all weights and dimensions are for standard units only.
Sandvik UJ440i is your ideal solution for operating in the toughest climatic conditions. This mobile jaw crusher is designed to be versatile, mobile, and productive, wherever you need it.
Heavy duty mobile jaw crusher
Sandvik have designed the Sandvik UJ440i to suit a wide range of different applications. The jaw settings can be adjusted hydraulically and there is a choice of jaw plates to suit the particular needs of your operation.
To ensure that the equipment works at optimum levels for longer periods, the impact zones have a rubber lining to reduce wear. Less downtime means better productivity.
Available in 2 variants, depending on your needs. Both are versatile, mobile and offer superior rates of production.
Features and Benefits:
Technical Data:
| Equipment | Sandvik CJ412 jaw crusher |
| Feed opening | 48 x 32 in |
| Maximum feed size | 30 in |
| Engine | D13 315 kW (422 hp) |
| Transport length | Classic: 54 ft 5 in Trend: 58 ft 10 in |
| Transport width | 9 ft 10 in |
| Transport height | 12 ft 10 in |
| Weight | 137,790 lb |
Please note all weights and dimensions are for standard units only.
