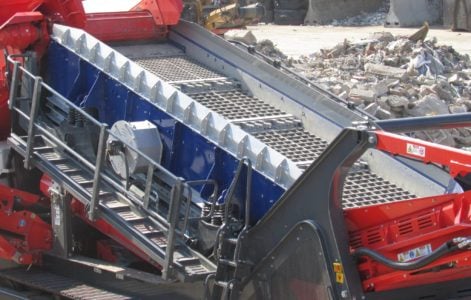

The most aggressive flip flow screen on the market.
The EDGE FreeFlow Screen allows for two screening operations in one unit. Customers can now processed un-prescreened material via the FreeFlow’s robust scalping screen top deck whilst providing a fine screening function of difficult to screen material via the flip flow bottom deck.
The EDGE FreeFlow Screen range provides a highly efficient screening solution for sticky, moist materials with a high percentage of fines and is ideal for the processing of compost, wood, skip waste, trommel fines, construction and demolition waste and incinerator ash. The screen has been designed to eliminate the blinding or blockage of the screen media that often occurs with traditional screens when screening wet or sticky material. The flip flow incorporates a heavy duty screen structure which generates a huge throw that propels material upwards and outwards so that the material can get time to untangle and separate. With increased throughput, high efficiency, adjustable speed and throw and quality end products; the EDGE FreeFlow Screen range is the ideal separation solution for difficult to screen materials.
Options:
Features and Benefits:
Applications:
The QE241 is the most compact model in the heavy duty scalper range.
It has been designed for the smaller operator who requires a high performing, versatile unit with a smaller operating footprint that is easy to transport.
Sandvik have designed the QE241 with a highly aggressive 11′ x 4′ double deck screenbox for increased screening efficiency. This features a banana type bottom deck arrangement to further improve screening capability.
Features and Benefits:
The enormous power of the QE441 scalper has been proven across a variety of applications worldwide. The fines conveyor alone is designed to handle up to 900TPH, making this unit an essential scalper for your operation.
Sandvik have designed the QE441 to best suit your requirements and this unit includes a heavy duty I-beam chassis, apron feeder, reinforced hopper doors and impact bar lined overs conveyor all equipped as standard. The QE441 can accept the most robust of infeed material and is best suited to your large quarrying, mining or recycling applications. It can also work as a stand-alone unit feeding a primary crusher.
Features and Benefits:
The QE341 Mobile Scalper is the most advanced, heavy duty, tracked mobile scalping screen on the market.
Sandvik have designed it to handle your most difficult infeed material with a wide hopper opening, aggressive screenbox and oversize conveyor. This also ensures a free flow of material from front to back.
The QE341 Mobile Scalper features a double-plated apron feeder as standard, ensuring it can handle heavy duty scalping applications. The middle and over size conveyors can be hydraulically lowered to feed material into a cone or primary. This revolutionary mobile scalping screen is purpose built for the recycling and quarrying markets. Customer feedback was an integral element in the production of the QE341, and has resulted in a mobile scalping screen that is as user friendly as it is productive.
Applications include screening quarry overburden, blasted rock, landfill mining, C&D waste, aggregates, slag heaps, environmental clean-ups and topsoil/subsoil.
Features and Benefits:
Performance Highlights
Specifications
Transport dimensions
Working dimensions
Weight
26,55 t (29 sT)
Length
10.732 mm (35’)
13.275 mm (43’3")
Height
3.130 mm (10’3”)
3.880 mm (14’4”)
Width
2.805 mm (8’4”)
14.010 mm (46’)
Performance Highlights
Specifications
Transport dimensions
Working dimensions
Weight
30 t (33 sT)
Length
13.360 mm (43’10”)
15.400 mm (50’6”)
Height
3.180 mm (10’7”)
3.700 mm (12’2”)
Width
2.720 mm (8’10”)
14.400 mm (47’3”)
Performance Highlights
Specifications
Transport dimensions
Working dimensions
Weight
37,5 t (41 sT)
Length
14.850 mm (48’7”)
15.400 mm (50’6”)
Height
3.27 mm (10’9”)
3.700 mm (12’2”)
Width
3.000 mm (9’10”)
14.400 mm (47’3”)
